General-purpose servo feeder provides basic performance at low cost
The Variax OPUS 2 series are servo feeders for presses that are optimized for producing electric motor cores used in home electrical appliances, such as air conditioners and general-purpose motors.
Compared to our OPUS1 series high-end Variax model, this series is lighter and more compact.
Due to the use of dual roller drives, it offers stable material feeding of various materials (wide, thin, or soft materials) with a low gripping force.
Since the models in this series have a large opening and a detachable lower cover, the rollers can be cleaned easily.
Compared to our OPUS1 series high-end Variax model, this series is lighter and more compact.
Due to the use of dual roller drives, it offers stable material feeding of various materials (wide, thin, or soft materials) with a low gripping force.
Since the models in this series have a large opening and a detachable lower cover, the rollers can be cleaned easily.
OPUS2 Series（4 models）
| OPUS2-200 | OPUS2-300 | OPUS2-450 | OPUS2-650 |
- Industry-leading world-class performance level
- Built in preventive maintenance and diagnostic functions for IoT compatibility
- Excellent operability with a security system
- A wide range of display functions
- Global support for many languages and services
- Can feed wide, thin, and soft materials

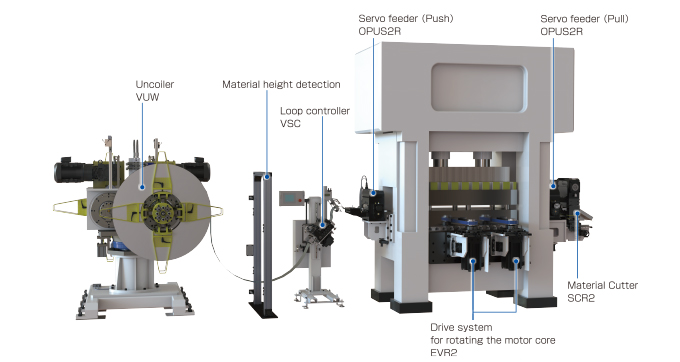

Motor core line for home electrical appliances（OPUS2, EVR2）

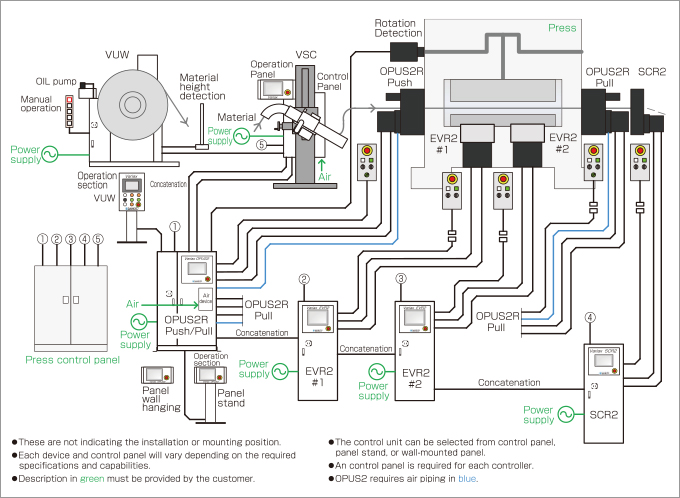

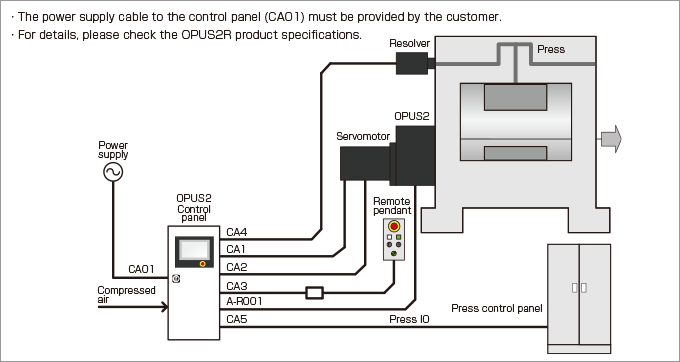

Control configuration diagram（OPUS2, EVR2）
Specification table
| Model name | Units | OPUS2-200／H | OPUS2-300／H | OPUS2-450／H | OPUS2-650／H |
| Feed length | mm | 1 ～ 200（999） | 1 ～ 300（999） | 1 ～ 450（999） | 1 ～ 650(999) |
| Material thickness | mm | max 2 | |||
| Gripping force | N | min 1,500 ～ max 3,000 | min 1,500 ～ max 5,000 | ||
| Pilot release length | mm | 0.1 | |||
| Roll opening dimension | mm | max 2.5 | max 2.5 | ||
| Material width | mm | max 200 | max 300 | max 450 | max 650 |
| Maximum number of strokes | min-1 | 1,000 | 500 | ||
| Minimum pilot release angle | deg | 90 | 50 | ||
| Maximum feed speed | m/min | 3.0 kW motor: Up to 60m/min.: 7.5kW motor: 60m/min. or more*1 |
3.0 kW motor: Up to 60m/min.: 7.5kW motor: 80m/min. or more*1 |
||
| Repeat accuracy | mm | ±0.03 | |||
| Operating air pressure | MPa | 0.5 ～ 0.6 | |||
| Paint color | N1.5（Black） | ||||
| Product weight | kg | 160 | 190 | 250 | 315 |
| *1 | Please check the separate feed capacity diagram. |
